Ascaso Baby T Direct Drain Retro-fit Kit

Kit for modifying the Baby T to have the water drain system hard plumbed.

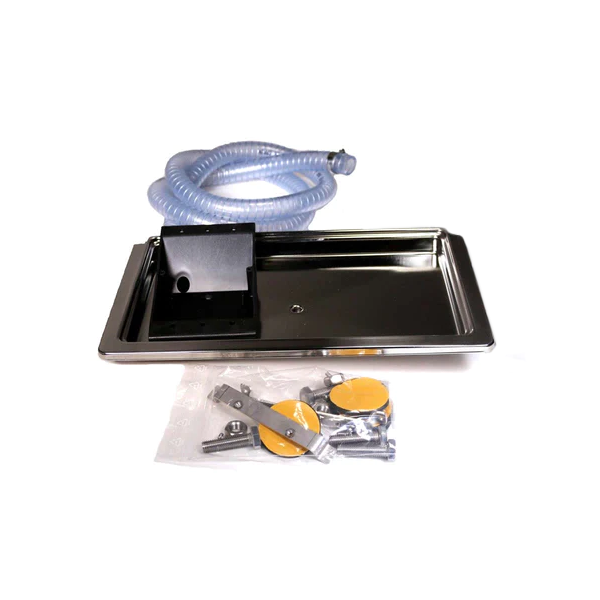

Includes:

• Drain collector.
• New tray with a hole to allow drain.
• Necessary screws and brackets to assemble the new collector.

• Nuts to increase the units overall height to allow for the hose to be free from kinking
• Drain tube and clamp

With newer ETL machines it is necessary to take out metal plate closing drain cut out. For regular machines this hole is not closed. This plate is fixed just with 4 screws which can be easily removed. Then drain supports are fixed on the same position that those 4 screws.

It’s a simple operation. Steps would be as follows:

• Remove tray and keep it, the regular one won’t be used for the drain system.
• Remove metal plate I.5423.
• Remove the feet and thread the included nuts on to each of the feet studs to increase the machine height (now you should have 2 x nuts per foot stud)
• Reinstall the feet
• Install drain tube on the drain collector (clamp required).
• Install drain collector on cut out in the base (which was closed by I.5423).
• Install drain collector supports and fix with screws.
• Place new tray.
